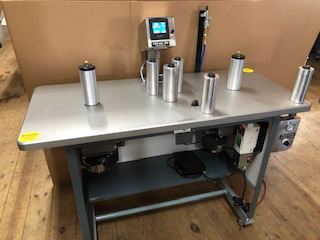

MODEL 200 BI-DIRECTIONAL

This rewinder has two 1 HP control matched motors to enable the operator to move the web from left or right while counting the labels on the roll. The option allows the operator to go halfway into a roll and take out a splice and return the roll to its original position with the labels oriented correctly. The PowerFlex40 from Allen-Bradley is the adjustable drive that is used. Each rewind shaft will spin clockwise or counter clockwise. Web tension is controlled by air clutches on both sides of the machine. Core sizes are available from 1 inch to 6 inch diameter.

TABLE SPECIFICATIONS

WEB WIDTH (MAX) 7"
UNWIND ROLL (MAX) 24"
REWIND ROLL (MAX) 20"
ROLL WEIGHT (MAX) 45 LBS
REWIND SPEED (MAX) 600 FT/MIN
TENSION BRAKE AIR CLUTCH - 100 PSI MAX
AC MOTOR POWER (2) 1 HP - AC MOTOR
REWIND TORQUE 130.1 IN/LBS
DECEL & STOP INCLUDED
WINDING CW & CCW
REWIND STOP TYPE DECELERATION & STOP
COUNT METHODS ALL OPTIONS AVAILABLE: LENGTH, MISSING LABEL, TRANSPARENT LABEL
ELECTRICAL REQ. 120 VAC STANDARD/220 VAC OPTIONAL
OPTIONS AVAILABLE ANY TECO OPTION (View Options)
TABLE SIZE 31"H x 56"W x 24"D

PRICE: $9,895
