MODEL 400
.jpg)
Counter/Controller
|

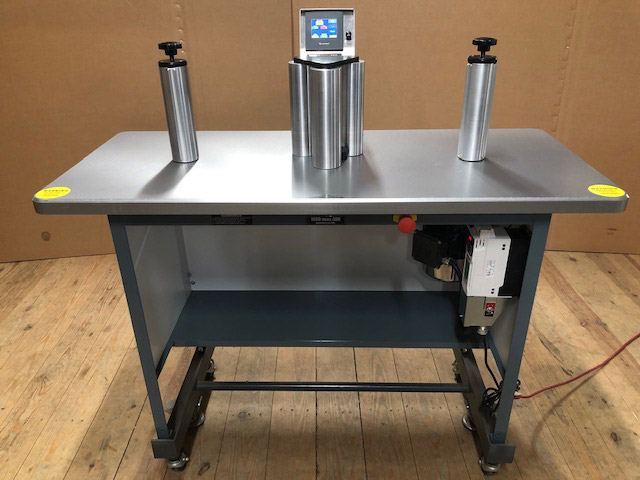

Model 400 is a large capacity, heavy duty rewind table designed for the converter or label manufacturer handling rolls up to 24" diameter, 10" web width and weighing up to 95 lbs. max. The Model 400 uses a 2 HP AC motor and speed control. It is provided with heavier bearings and drive shaft as well as heavier unwind and rewind shafts. Core holders and idler spindles are designed for for 10" web. In addition to its heavier design it has all the features of the Model 300. The Model 400 comes complete with two 3" wedge lock core holders and manual. NOTE: Requires 240 VAC, 12 AMP.
|
TABLE SPECIFICATIONS |
| WEB WIDTH (MAX) |
10" |
| UNWIND ROLL (MAX) |
24" |
| REWIND ROLL (MAX) |
24" |
| ROLL WEIGHT (MAX) |
95 LBS |
| REWIND SPEED (MAX) |
300 FT/MIN |
| TENSION BRAKE |
HEAVY DUTY DISC BRAKE |
| AC MOTOR POWER |
2 HP - AC MOTOR |
| REWIND TORQUE |
205.2 IN/LBS |
| DECEL & STOP |
INCLUDED |
| WINDING |
CW & CCW |
| REWIND STOP TYPE |
DECELERATION & STOP |
| COUNT METHODS |
ALL OPTIONS AVAILABLE: LENGTH, MISSING LABEL, TRANSPARENT LABEL |
| ELECTRICAL REQ. |
240 VAC |
| OPTIONS AVAILABLE |
ANY TECO OPTION (View Options) |
| TABLE SIZE |
31"H x 56"W x 24"D |
PRICE: $8,995 |
|
