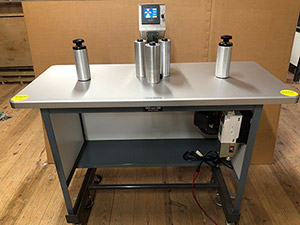

MODEL 300

Model 300 is a heavy duty rewind table designed to meet the needs of a high volume label manufacturer or converter. This high speed, rugged rewinder can be used with any of the Teco options and is well suited for large roll sizes up to 24" unwind to 24" rwind with 8' web width. Roll weights can be up to 60 lbs. max.
Counter/Controller
The table is supplied with our 6 digit dual stage predetermining counter featuring auto deceleration and stop for very accurate label or length count. The Model 300 incorporates a heavy duty web tension adjustment and quick brake on the unwind spindle. The machine has a 1-1/2 HP AC motor and speed control. The 300 is supplied with two 3" core holders and a complete operations manual. NOTE: Requires 120 or 240 VAC, 12 AMP. (Please specify desired voltage)

TABLE SPECIFICATIONS

WEB WIDTH (MAX) 8"
UNWIND ROLL (MAX) 24"
REWIND ROLL (MAX) 24"
ROLL WEIGHT (MAX) 60 LBS
REWIND SPEED (MAX) 600 FT/MIN
TENSION BRAKE HEAVY DUTY DISC BRAKE
AC MOTOR POWER 1-1/2 HP AC MOTOR
REWIND TORQUE 138.7 IN/LBS
DECEL & STOP INCLUDED
WINDING CW & CCW
REWIND STOP TYPE DECELERATION & STOP
COUNT METHODS ALL OPTIONS AVAILABLE: LENGTH, MISSING LABEL, TRANSPARENT LABEL
ELECTRICAL REQ. 120 VAC STANDARD/220 VAC OPTIONAL
OPTIONS AVAILABLE ANY TECO OPTION (View Options)
TABLE SIZE 31"H x 56"W x 24"D

PRICE: $6,700
